Geometry factory functions

These functions create WKB/WKT geometries from input vertices or arcs, and build container geometry types from sub-geometries.

Usage

g_create(
  geom_type,
  pts = NULL,
  as_wkb = TRUE,
  as_iso = FALSE,
  byte_order = "LSB"
)

g_add_geom(
  sub_geom,
  container,
  as_wkb = TRUE,
  as_iso = FALSE,
  byte_order = "LSB"
)

g_get_geom(
  container,
  sub_geom_idx,
  as_wkb = TRUE,
  as_iso = FALSE,
  byte_order = "LSB"
)

g_build_collection(
  geoms,
  coll_type = "GEOMETRYCOLLECTION",
  as_wkb = TRUE,
  as_iso = FALSE,
  byte_order = "LSB"
)

g_build_polygon_from_edges(
  lines,
  auto_close = TRUE,
  tolerance = 0,
  as_wkb = TRUE,
  as_iso = FALSE,
  byte_order = "LSB"
)

Arguments

geom_type

Character string (case-insensitive), one of "POINT", "MULTIPOINT", "LINESTRING", "POLYGON" (see Note) or "GEOMETRYCOLLECTION".

pts

Numeric matrix of points (x, y, z, m), or NULL to create an empty geometry. The points can be given as (x, y), (x, y, z) or (x, y, z, m), so the input must have two, three or four columns. Data frame input will be coerced to numeric matrix. Rings for polygon geometries should be closed.

as_wkb

Logical value, TRUE to return the output geometry in WKB format (the default), or FALSE to return a WKT string.

as_iso

Logical value, TRUE to export as ISO WKB/WKT (ISO 13249 SQL/MM Part 3), or FALSE (the default) to export as "Extended WKB/WKT".

byte_order

Character string specifying the byte order when output is WKB. One of "LSB" (the default) or "MSB" (uncommon).

sub_geom

Either a raw vector of WKB or a character string of WKT.

container

Either a raw vector of WKB or a character string of WKT for a container geometry type.

sub_geom_idx

An integer value giving the 1-based index of a sub-geometry (numeric values will be coerced to integer by truncation).

geoms

Either a list of WKB raw vectors or character vector of WKT strings.

coll_type

A character string specifying a geometry collection type, e.g., "GEOMETRYCOLLECTION" (the default), "MULTIPOINT", "MULTILINESTRING", "MULTIPOLYGON".

lines

Either a raw vector of WKB or a character string of WKT specifying a GeometryCollection or MultiLineString, or a list of WKB raw vectors for LineStrings, or a character vector of WKT strings.

auto_close

A logical value, TRUE (the default) if the polygon should be closed when first and last points of the ring are the same.

tolerance

A numeric value giving the tolerance into which two arcs are considered close enough to be joined.

Value

A geometry as WKB raw vector by default, or a WKT string if as_wkb = FALSE. In the case of multiple input points for creating Point`` geometry type, a list of WKB raw vectors or character vector of WKT strings will be returned. NULL` is returned with a warning if the an error occurs in the geometry operation.

Details

These functions use the GEOS library via GDAL headers.

g_create() creates a geometry object from the given point(s) and returns a raw vector of WKB (the default) or a character string of WKT. Currently supports creating Point, MultiPoint, LineString, and Polygon (including 25D, Z, M, ZM variants). If multiple input points are given for creating Point, then multiple geometries will be returned as a list of WKB raw vectors, or character vector of WKT strings if as_wkb = FALSE. Otherwise, a single geometry is created from the input points. Only an empty GeometryCollection / MultiLineString / MultiPolygon can be created with this function (for subsequent use with g_add_geom()).

g_add_geom() adds a geometry to a geometry container, e.g., Polygon to Polygon (to add an interior ring), Point to MultiPoint, LineString to MultiLineString, Polygon to MultiPolygon, or mixed geometry types to a GeometryCollection. Returns a new geometry, i.e, the container geometry is not modified.

g_get_geom() fetches a geometry from a geometry container (1-based indexing). For a polygon, requesting the first sub-geometry returns the exterior ring (sub_geom_idx = 1), and the interior rings are returned for sub_geom_idx > 1.

g_build_collection() builds a collection / container type geometry, e.g., GeometryCollection, MultiPoint, MultiLineString, MultiPolygon, from a set of input geometries given as a list of WKB raw vectors or a character vector of WKT strings.

g_build_polygon_from_edges() builds a polygon from a set of arcs given in a GeometryCollection, MultiLineString, list of WKB raw vectors, or character vector of WKT strings.

Note

A POLYGON can be created for a single ring which will be the exterior ring. Additional POLYGONs can be created and added to an existing POLYGON with g_add_geom(). These will become interior rings. Alternatively, an empty polygon can be created with g_create("POLYGON"), followed by creation and addition of POLYGONs as sub-geometries. In that case, the first added POLYGON will be the exterior ring. The next ones will be the interior rings.

Only an empty GeometryCollection can be created with g_create(), which can then be used as a container with g_add_geom(). If given, input points will be ignored by g_create() if geom_type = "GEOMETRYCOLLECTION".

Examples

# raw vector of WKB by default
g_create("POINT", c(1, 2))
#>  [1] 01 01 00 00 00 00 00 00 00 00 00 f0 3f 00 00 00 00 00 00 00 40

# as WKT
g_create("POINT", c(1, 2), as_wkb = FALSE)
#> [1] "POINT (1 2)"

# or convert in either direction
g_create("POINT", c(1, 2)) |> g_wk2wk()
#> [1] "POINT (1 2)"
g_create("POINT", c(1, 2), as_wkb = FALSE) |> g_wk2wk()
#>  [1] 01 01 00 00 00 00 00 00 00 00 00 f0 3f 00 00 00 00 00 00 00 40

# create MultiPoint from a matrix of xyz points
x <- c(9, 1)
y <- c(1, 9)
z <- c(0, 10)
pts <- cbind(x, y, z)
mp <- g_create("MULTIPOINT", pts)
g_wk2wk(mp)
#> [1] "MULTIPOINT (9 1 0,1 9 10)"
g_wk2wk(mp, as_iso = TRUE)
#> [1] "MULTIPOINT Z ((9 1 0),(1 9 10))"

# create an empty container and add sub-geometries
mp2 <- g_create("MULTIPOINT")
mp2 <- g_create("POINT", c(11, 2)) |> g_add_geom(mp2)
mp2 <- g_create("POINT", c(12, 3)) |> g_add_geom(mp2)
g_wk2wk(mp2)
#> [1] "MULTIPOINT (11 2,12 3)"

# or build a container/collection type geometry from WKB list or WKT vector
lines <- c("LINESTRING (0 0,3 0)",
           "LINESTRING (3 0,3 4)",
           "LINESTRING (3 4,0 0)")
(multi_line <- g_build_collection(lines, "MULTILINESTRING", as_wkb = FALSE))
#> [1] "MULTILINESTRING ((0 0,3 0),(3 0,3 4),(3 4,0 0))"

# get sub-geometry from container
g_get_geom(multi_line, 2, as_wkb = FALSE)
#> [1] "LINESTRING (3 0,3 4)"

# build a polygon from a set of arcs
(poly <- g_build_polygon_from_edges(lines, as_wkb = FALSE))
#> [1] "POLYGON ((0 0,3 0,3 4,0 0))"

# plot a vector of WKT strings or list of WKB raw vectors

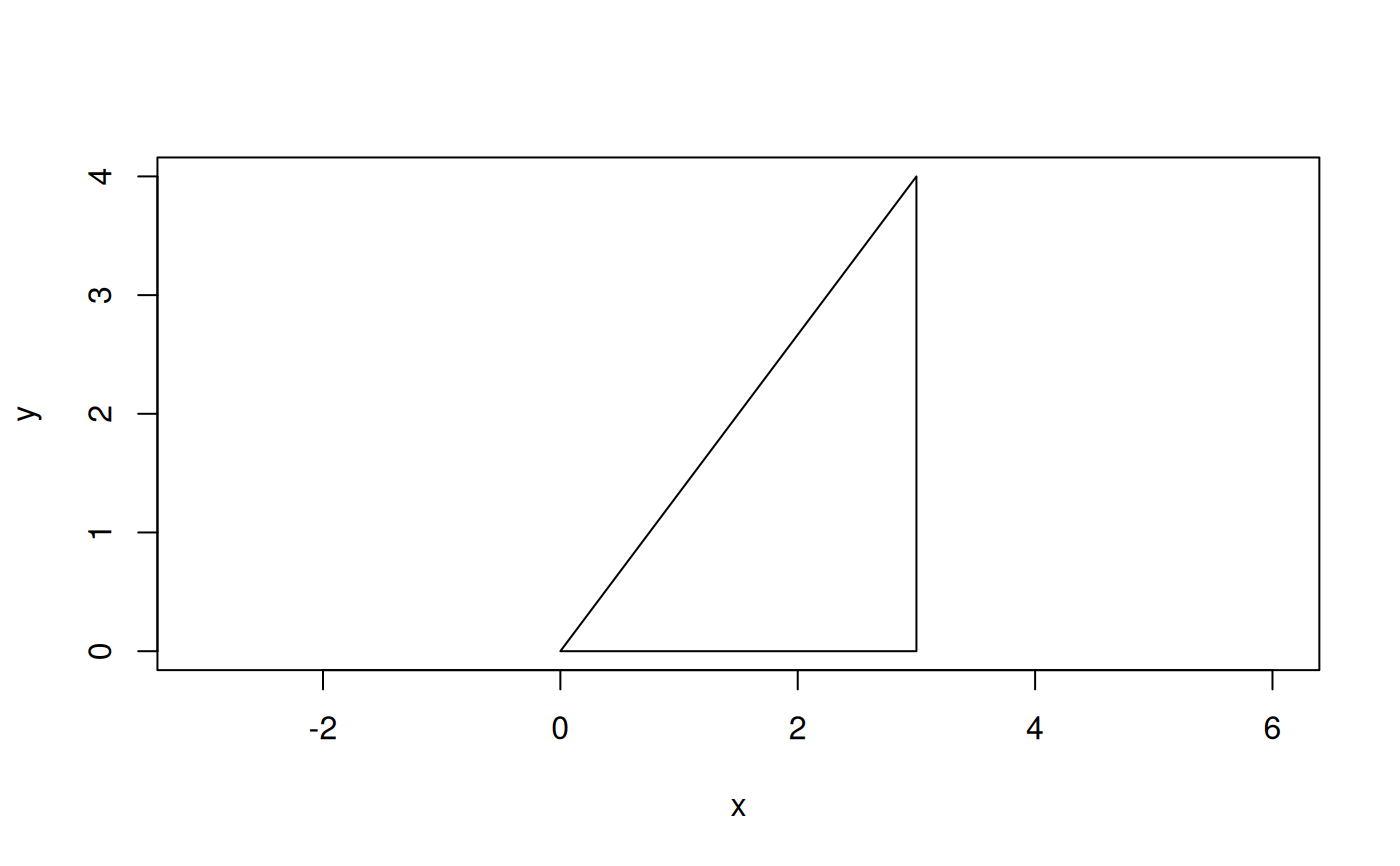

plot_geom(poly)
