Create a GDAL in-memory dataset from R data without copying

rvector_to_MEM() creates a GDAL MEM dataset that references pixel data in an existing R vector. It returns an object of class GDALRaster for a writable in-memory dataset without copying the source data. The underlying R object is protected from garbage collection until the returned dataset is closed. GDAL MEM datasets support most kinds of auxiliary information including metadata, coordinate systems, georeferencing, color interpretation, nodata, color tables and all pixel data types (see Details).

Usage

rvector_to_MEM(
  data,
  xsize,
  ysize,
  nbands = 1L,
  gt = NULL,
  bbox = NULL,
  srs = NULL
)

vector_to_MEM(
  data,
  xsize,
  ysize,
  nbands = 1L,
  gt = NULL,
  bbox = NULL,
  srs = NULL
)

Arguments

data: An R vector of type "double", "integer", "raw" or "complex", containing pixel values to be exposed as a GDAL in-memory raster. The pixels must be arranged in left-to-right, top-to-bottom order interleaved by band. length(data) must equal xsize * ysize * nbands.
xsize: Integer value giving the number of raster columns.
ysize: Integer value giving the number of raster rows.
nbands: Integer value giving the number of raster bands.
gt: A numeric vector of length six containing the affine geotransform for the raster. Defaults to c(0, 1, 0, 0, 0, 1) if neither gt nor bbox are given.
bbox: A numeric vector of length four containing the raster bounding box geospatial coordinates (c(xmin, ymin, xmax, ymax)). Ignored if gt is given.
srs: Optional character string containing the raster spatial reference coordinate system as a WKT string. epsg_to_wkt() or srs_to_wkt() can be used to convert from other formats to WKT if necessary.

Value

An object of class GDALRaster providing a GDAL MEM dataset with write access pointing to the underlying C array for data. The R object referenced by data is protected from garbage collection during the lifetime of the returned dataset, i.e., until its $close() is called or the dataset object itself is garbage collected. An error is raised if creation of the MEM dataset fails.

Details

The returned dataset is open with write access. Methods of the GDALRaster object can be called to modify dataset and band properties, e.g., to set nodata values, metadata items, band descriptions, color tables, etc. The original R vector will be modified in place if the object's $write() method is used.

The MEM dataset will have a GDAL data type matching the type of the input vector:

R vector type	GDAL raster type
double	Float64
integer	Int32
raw	UInt8 (Byte in GDAL < 3.13)
complex	CFloat64

vector_to_MEM() is an alias of rvector_to_MEM() for backward compatibility. It is a deprecated name of the function that will be removed in a future version. Please use rvector_to_MEM() instead.

Note

MEM datasets also support addBand() from existing R data without copying (see Examples).

The $close() method should be called when the GDALRaster object is no longer needed so that resources can be freed. MEM datasets cannot be re-opened once the object's $close() method has been called.

vector_to_MEM() is a deprecated name for the function, currently set as an alias of rvector_to_MEM(). The vector_to_MEM() alias will be removed in a future version.

Examples

v <- sample(0:255, 20, replace = TRUE)
(ds_mem <- rvector_to_MEM(v, xsize = 5, ysize = 4))
#> C++ object of class <GDALRaster>
#>   • Driver: In Memory Raster (MEM)
#>   • DSN: <data pointer>
#>   • Dimensions: 5, 4, 1
#>   • CRS: not set
#>   • Pixel resolution: 1.000000, 1.000000
#>   • Bbox: 0.000000, 0.000000, 5.000000, 4.000000

all((ds_mem$read(1, 0, 0, 5, 4, 5, 4) == v))
#> [1] TRUE

ds_mem$write(1, 0, 0, 5, 4, (v * -1))
print(v)
#>  [1]  -46  -43 -196 -142 -124 -149 -196  -63 -111 -176  -53 -254 -202  -79 -141
#> [16] -148 -179  -64  -47 -151

ds_mem$close()

# MEM also supports no-copy addBand() from R data
xsize <- 400
ysize <- 300
r <- sample(0:255, xsize * ysize, replace = TRUE) |> as.raw()
ds_mem <- rvector_to_MEM(r, xsize, ysize)
ds_mem$setRasterColorInterp(1, "Red")

g <- sample(0:255, xsize * ysize, replace = TRUE) |> as.raw()
ds_mem$addBand("Byte", g)
#> [1] TRUE
ds_mem$setRasterColorInterp(2, "Green")

b <- sample(0:255, xsize * ysize, replace = TRUE) |> as.raw()
ds_mem$addBand("Byte", b)
#> [1] TRUE
ds_mem$setRasterColorInterp(3, "Blue")

ds_mem$info()
#> Driver: MEM/In Memory Raster
#> Files: none associated
#> Size is 400, 300
#> Origin = (0.000000000000000,0.000000000000000)
#> Pixel Size = (1.000000000000000,1.000000000000000)
#> Corner Coordinates:
#> Upper Left  (   0.0000000,   0.0000000)
#> Lower Left  (       0.000,     300.000)
#> Upper Right (     400.000,       0.000)
#> Lower Right (     400.000,     300.000)
#> Center      (     200.000,     150.000)
#> Band 1 Block=400x1 Type=Byte, ColorInterp=Red
#> Band 2 Block=400x1 Type=Byte, ColorInterp=Green
#> Band 3 Block=400x1 Type=Byte, ColorInterp=Blue

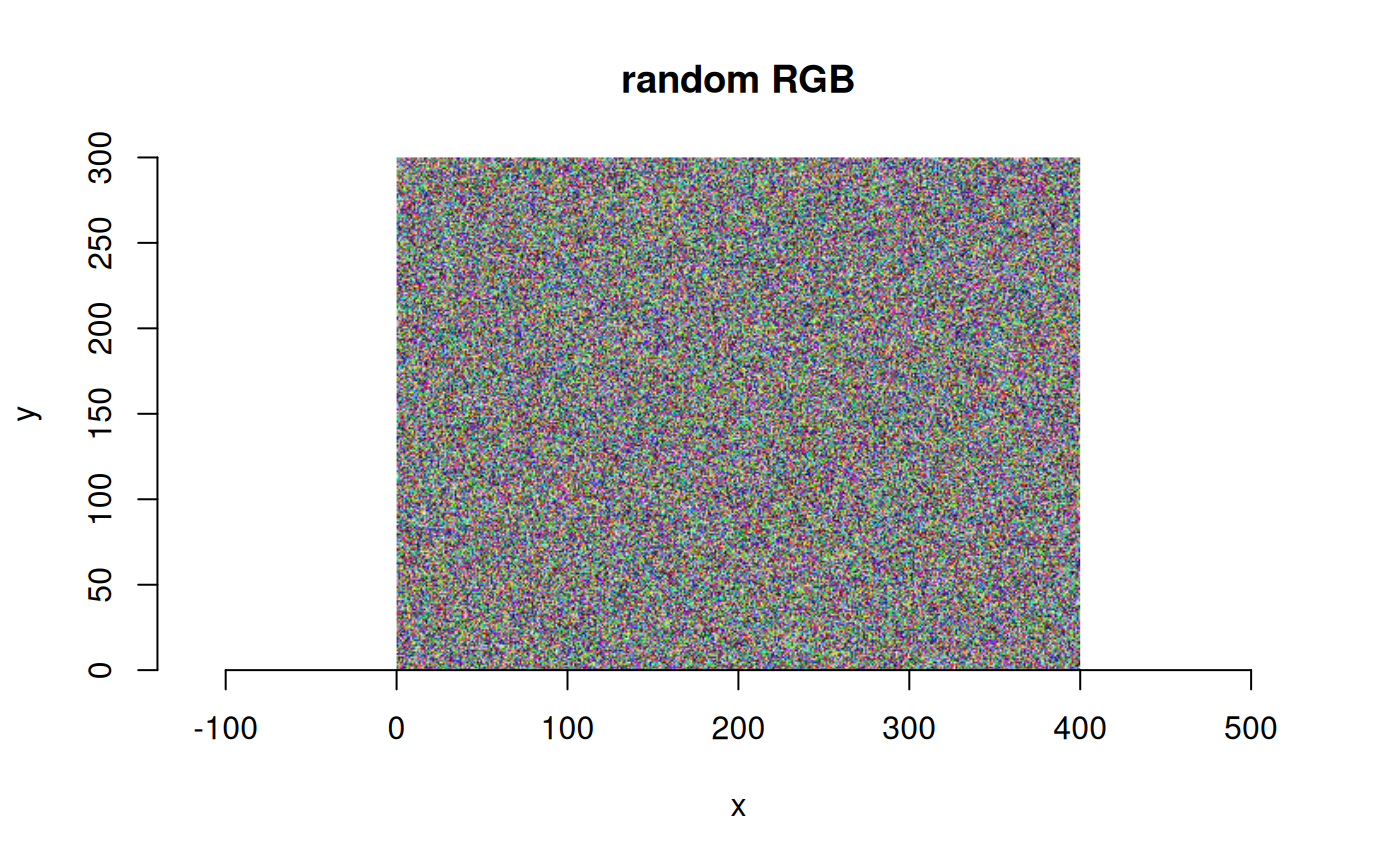

plot_raster(ds_mem, main = "random RGB")
#> ✖ failed to get projection ref

ds_mem$close()
